CWE

Common Weakness Enumeration (CWE™) is a formal list or dictionary of common software and hardware weaknesses that can occur in architecture, design, code, or implementation that can lead to exploitable security vulnerabilities. CWE was created to serve as a common language for describing security weaknesses; serve as a standard measuring stick for security tools targeting these weaknesses; and to provide a common baseline standard for weakness identification, mitigation, and prevention efforts. “Weaknesses” are flaws, faults, bugs, and other errors in software and hardware design, architecture, code, or implementation that if left unaddressed could result in systems and networks, and hardware being vulnerable to attack

source: cwe.mitre.org

You can see this notebook directly via:

• GitHub

• Jupter nbviewer

Generation time

from datetime import datetime, timezone, timedelta

timezone_offset = 0.0
tzinfo = timezone(timedelta(hours=timezone_offset))
generation_time = datetime.now(tzinfo).strftime('%Y-%m-%d %H:%M:%S %z')
print(generation_time)

2024-07-26 13:46:35 +0000

Creative Commons

This notebook and generated diagrams are released with Creative Commons liecense (CC BY 4.0).

import requests
import urllib3

urllib3.disable_warnings()

urls = ['https://mirrors.creativecommons.org/presskit/icons/cc.xlarge.png',
       'https://mirrors.creativecommons.org/presskit/icons/by.xlarge.png']
for url in urls:
    file_name = url.split("/")[-1:][0]
    print(file_name)

    file = requests.get(url, verify=False)
    open(file_name, 'wb').write(file.content)


CWE data downloading

All CWE IDs are taken from cwe.mitre.org/data/downloads.html

url = 'https://cwe.mitre.org/data/xml/cwec_latest.xml.zip'
file_name = url.split("/")[-1:][0]
print(file_name)

cwec_latest.xml.zip

import requests
import urllib3

urllib3.disable_warnings()

file = requests.get(url, verify=False)
open(file_name, 'wb').write(file.content)

1738150

import zipfile

with zipfile.ZipFile(file_name, 'r') as zip_ref:
    zip_ref.extractall()

import glob

file_name = glob.glob('*.xml')[-1]
print(file_name)

cwec_v4.15.xml

CWE data parsing

Updated to pars cwec_v4.14.xml.

import pandas as pd
import xml.etree.ElementTree as et

tree = et.parse(file_name)
root = tree.getroot()
df_cols = ["number", "year"]
rows = []

if root.findall('{http://cwe.mitre.org/cwe-7}Weaknesses'):
    weeknesses = root.find('{http://cwe.mitre.org/cwe-7}Weaknesses')
    for weekness in weeknesses:
        weekness_id = weekness.get("ID")
        weekness_content_history = weekness.find("{http://cwe.mitre.org/cwe-7}Content_History")
        weekness_content_submission = weekness_content_history.find("{http://cwe.mitre.org/cwe-7}Submission")
        weekness_content_submission_date = weekness_content_submission.find("{http://cwe.mitre.org/cwe-7}Submission_Date").text
        weekness_content_submission_year = weekness_content_submission_date[0:4]

        rows.append({"number": weekness_id, "year": weekness_content_submission_year})

df = pd.DataFrame(rows, columns = df_cols)

print(df)

    number  year
0     1004  2017
1     1007  2017
2      102  2006
3     1021  2017
4     1022  2017
..     ...   ...
959     95  2006
960     96  2006
961     97  2006
962     98  2006
963     99  2006

[964 rows x 2 columns]

df = df.groupby(['year'], as_index=False)[['number']].count()
df.reset_index(drop=True, inplace=True)
df.index += 1

df.style.bar(subset=['number'], color='#FF6200')

	year	number
1	2006	533
2	2007	27
3	2008	67
4	2009	44
5	2010	20
6	2011	11
7	2012	5
8	2013	14
9	2014	5
10	2017	4
11	2018	94
12	2019	21
13	2020	95
14	2021	9
15	2022	8
16	2023	6
17	2024	1

CWE data saving

CSV file is available in GitHub repository, see:

• file via GitHub

• file directly

csv_filename = 'cwe-number-of-entries.csv'

df.to_csv(csv_filename, index=False)

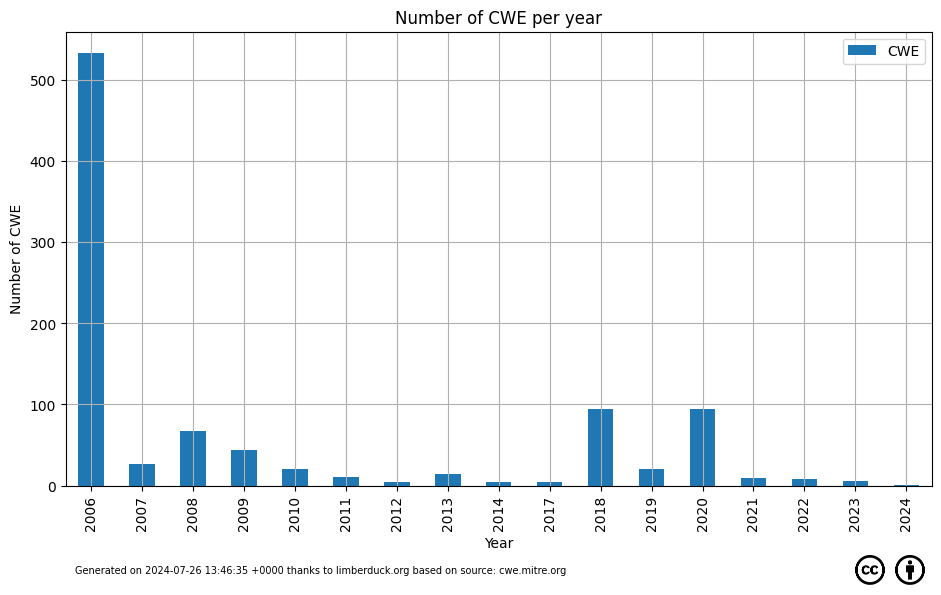

CWE data ploting

PNG files are available in GitHub repository with two background versions, see:

• file via GitHub (white background)

• file via GitHub (transparent background)

• file directly (white background)

• file directly (transparent background)

import pandas as pd
import matplotlib.pyplot as plt
import datetime

df = pd.read_csv(csv_filename)

df.plot(x='year',
        xlabel='Year',
        y='number',
        ylabel='Number of CWE',
        kind='bar',
        title='Number of CWE per year')
plt.tight_layout()
plt.legend(['CWE'])
plt.figtext(0.12, 0.02, f"Generated on {generation_time} thanks to limberduck.org based on source: cwe.mitre.org", ha="left", fontsize=7)
fig = plt.gcf()
fig.set_size_inches(10,6)
fig.patch.set_facecolor('white')
plt.grid(True)

img_cc = plt.imread('cc.xlarge.png')
newax_cc = fig.add_axes([0.88, 0.0, 0.05, 0.05], anchor='NE', zorder=-1)
newax_cc.imshow(img_cc)
newax_cc.axis('off')
img_by = plt.imread('by.xlarge.png')
newax_by = fig.add_axes([0.92, 0.0, 0.05, 0.05], anchor='NE', zorder=-1)
newax_by.imshow(img_by)
newax_by.axis('off')

plt.savefig('cwe-number-of-entries-bg-white.png', dpi = 300, facecolor = 'white')
plt.savefig('cwe-number-of-entries-bg-transparent.png', dpi = 300, transparent = True)
